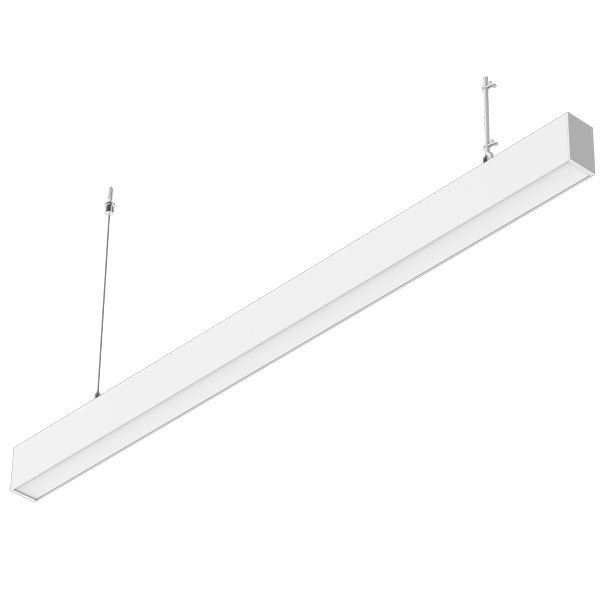

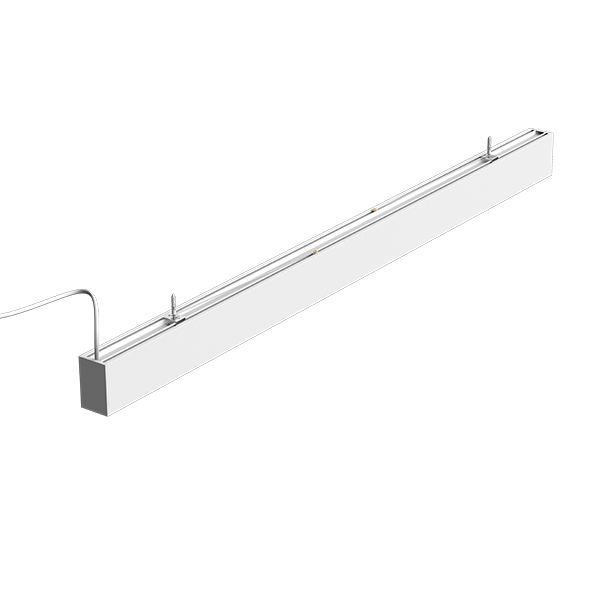

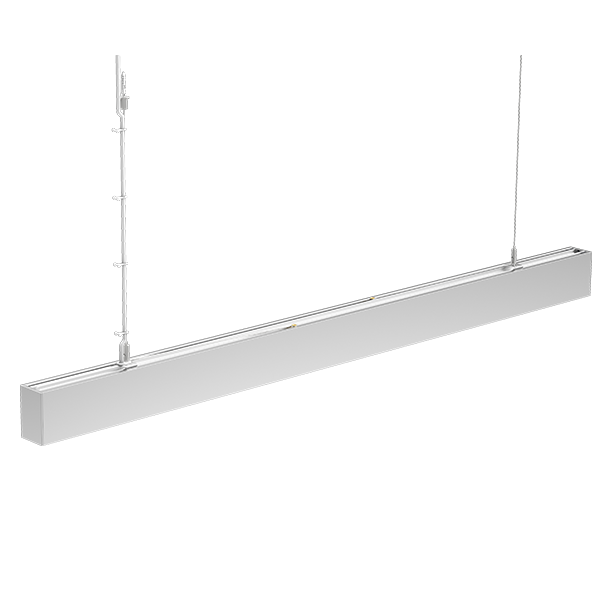

LED linear light is exclusively designed for designer and architect with imagination and personal style. LED linear light adopt premium aluminum profile, the different dimension, and size, easy to install.
Simple and modern design, screwless at the end cap.
Extrusion aluminum lamp body and PC cover.
Smooth and soft lighting effect, no dark dot and shadow at the lighting area.

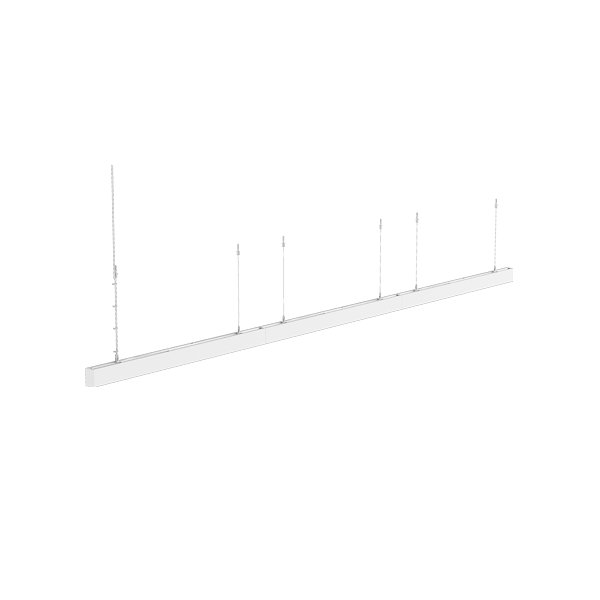

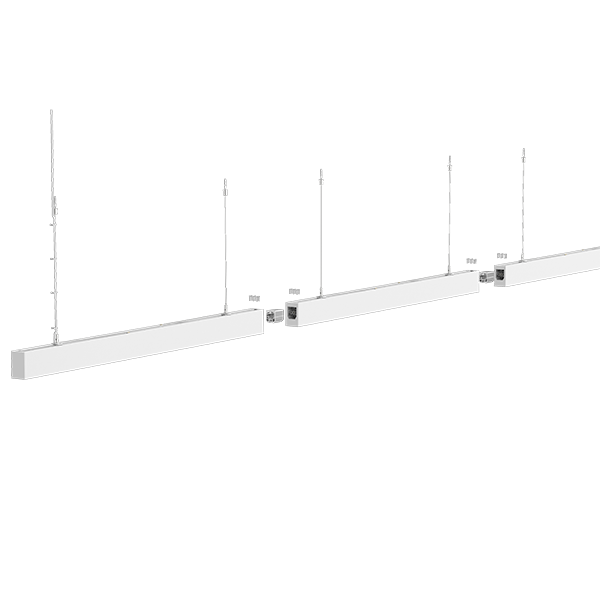

Various installation: Suspendent, ceiling and recessed.
First run
| Model | CCT | LED type | Lumen(lm) (±10%) | Power(W) (±10%) | Length(mm) | Voltage (V) |
| SC-SL8050-018-AW-02W | 6000-6500K | 2835 | 1656lm | 18W | 600 | AC 100-240V 50/60Hz |
| SC-SL8050-018-AW-02NW | 3800-4200K | 1620lm | 18W | 600 | ||
| SC-SL8050-018-AW-02WW | 2800-3200K | 1530lm | 18W | 600 | ||
| SC-SL8050-036-AW-02W | 6000-6500K | 2835 | 3312lm | 36W | 1200 | AC 100-240V 50/60Hz |
| SC-SL8050-036-AW-02NW | 3800-4200K | 3240lm | 36W | 1200 | ||
| SC-SL8050-036-AW-02WW | 2800-3200K | 3060lm | 36W | 1200 | ||
| SC-SL8050-045-AW-02W | 6000-6500K | 2835 | 4140lm | 45W | 1500 | AC 100-240V 50/60Hz |
| SC-SL8050-045-AW-02NW | 3800-4200K | 4050lm | 45W | 1500 | ||
| SC-SL8050-045-AW-02WW | 2800-3200K | 3825lm | 45W | 1500 |
Middle run
| Model | CCT | LED type | Lumen(lm) (±10%) | Power(W) (±10%) | Length(mm) | Voltage (V) |
| SC-SL8050-018-AW-03W | 6000-6500K | 2835 | 1656lm | 18W | 600 | AC 100-240V 50/60Hz |
| SC-SL8050-018-AW-03NW | 3800-4200K | 1620lm | 18W | 600 | ||
| SC-SL8050-018-AW-03WW | 2800-3200K | 1530lm | 18W | 600 | ||
| SC-SL8050-036-AW-03W | 6000-6500K | 2835 | 3312lm | 36W | 1200 | AC 100-240V 50/60Hz |
| SC-SL8050-036-AW-03NW | 3800-4200K | 3240lm | 36W | 1200 | ||
| SC-SL8050-036-AW-03WW | 2800-3200K | 3060lm | 36W | 1200 | ||
| SC-SL8050-045-AW-03W | 6000-6500K | 2835 | 4140lm | 45W | 1500 | AC 100-240V 50/60Hz |
| SC-SL8050-045-AW-03NW | 3800-4200K | 4050lm | 45W | 1500 | ||
| SC-SL8050-045-AW-03WW | 2800-3200K | 3825lm | 45W | 1500 |
Last run
| Model | CCT | LED type | Lumen(lm) (±10%) | Power(W) (±10%) | Length(mm) | Voltage (V) |
| SC-SL8050-018-AW-04W | 6000-6500K | 2835 | 1656lm | 18W | 600 | AC 100-240V 50/60Hz |
| SC-SL8050-018-AW-04NW | 3800-4200K | 1620lm | 18W | 600 | ||
| SC-SL8050-018-AW-04WW | 2800-3200K | 1530lm | 18W | 600 | ||
| SC-SL8050-036-AW-04W | 6000-6500K | 2835 | 3312lm | 36W | 1200 | AC 100-240V 50/60Hz |
| SC-SL8050-036-AW-04NW | 3800-4200K | 3240lm | 36W | 1200 | ||
| SC-SL8050-036-AW-04WW | 2800-3200K | 3060lm | 36W | 1200 | ||
| SC-SL8050-045-AW-04W | 6000-6500K | 2835 | 4140lm | 45W | 1500 | AC 100-240V 50/60Hz |
| SC-SL8050-045-AW-04NW | 3800-4200K | 4050lm | 45W | 1500 | ||
| SC-SL8050-045-AW-04WW | 2800-3200K | 3825lm | 45W | 1500 |
| Model | CCT | LED type | Lumen(lm) (±10%) | Power(W) (±10%) | Length(mm) | Voltage (V) |
| SC-SL8050-018-AW-01W | 6000-6500K | 2835 | 1656lm | 18W | 600 | AC 100-240V 50/60Hz |
| SC-SL8050-018-AW-01NW | 3800-4200K | 1620lm | 18W | 600 | ||
| SC-SL8050-018-AW-01WW | 2800-3200K | 1530lm | 18W | 600 | ||
| SC-SL8050-036-AW-01W | 6000-6500K | 2835 | 3312lm | 36W | 1200 | AC 100-240V 50/60Hz |
| SC-SL8050-036-AW-01NW | 3800-4200K | 3240lm | 36W | 1200 | ||
| SC-SL8050-036-AW-01WW | 2800-3200K | 3060lm | 36W | 1200 | ||
| SC-SL8050-045-AW-01W | 6000-6500K | 2835 | 4140lm | 45W | 1500 | AC 100-240V 50/60Hz |
| SC-SL8050-045-AW-01NW | 3800-4200K | 4050lm | 45W | 1500 | ||
| SC-SL8050-045-AW-01WW | 2800-3200K | 3825lm | 45W | 1500 |
| Beam angle | PF | CRI | IP | Lifespan | Reflector |
| 110° | >095 | ^80 | IP40 | 50000hrs | Milky cover |
