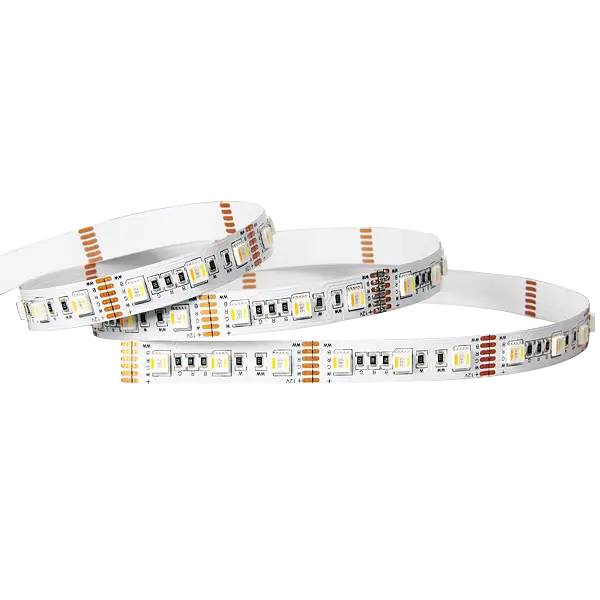

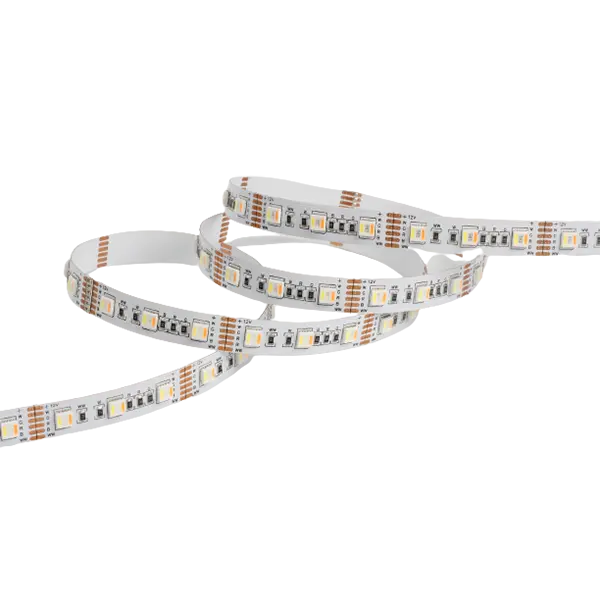

5050 assembled LEDs;
CRI 80, 5 colors mixed to reach 65536 colors, and the LED strip is equipped with the special controller to control 52 kinds of variable modes;

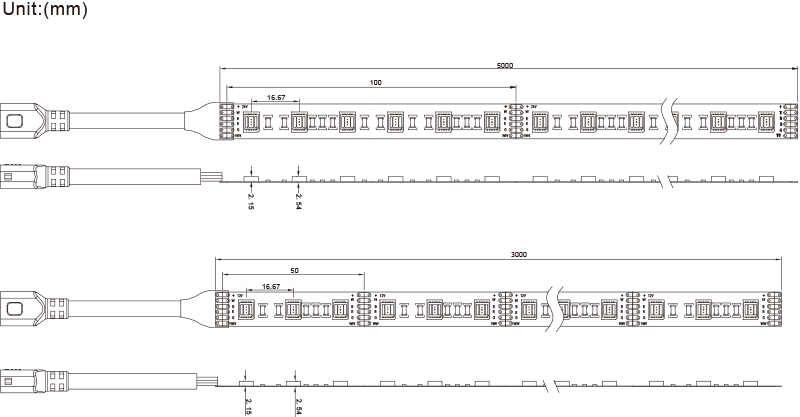

In order to meet the needs of different lengths by cutting off the connections, the minimum shear length of the 12V rod is 50mm, and the minimum shear length of 24V is 100mm; The change of the length of the self-defined shear length can be the integer double of the minimum cut length. 12 V / 24 VDC.
As a leading LED strip manufacturer, Signcomplex pride ourselves on delivering high-quality and innovative lighting solutions. Based in China, our LED strips are crafted with precision, embodying the high standards of LED strip production in the region.
| Model | Colour | Lumen | LED type | LED qty. (leds/m) | Beam angle (degree) | DC voltage (V) | Rated watt (W/m) | CRI | IP |
| SC-OID5-12V/24V | R | 78 | 5050 | 60 | 120 | 12/24 | 4.8 | 80 | 20 |
| G | 340 | ||||||||
| B | 63 | ||||||||
| RGB | 453 | 5050 | 60 | 120 | 12/24 | 14.4 | 80 | 20 | |
| RGB+WW+W | 1528 | 5050 | 60 | 120 | 12/24 | 28.8 | |||
| W | 721 | 5050 | 60 | 120 | 12/24 | 7.2 | |||
| WW | 528 | 5050 | 60 | 120 | 12/24 | 7.2 | 80 | 20 |
