Special FPC board and PCB treatment process to enhance light reflection and heat dissipation, bring better weather resistance and excellent visual effects.
Use the latest phosphor technology for reference, improve the red purity, increase the color gamut coverage area, and make R9 and Ra improve in both directions.

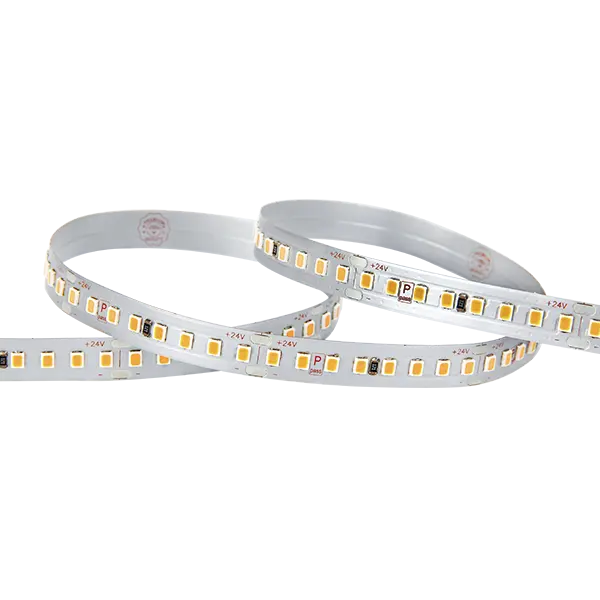

Quality SMD2835 0.2W LED provides unparalleled design-in Flexibility for LED strips application.
Waterproof or non-waterproof optional, applicable to more scenarios
Model | CCT | Efficiency (lm/W) | Lumen (lm/m) | Rated watt (W/m) | LED type | Beam angle | Class | Voltage (V) | Ra | R9 | IP |
SC-2835-Ppass | 2700K | 126 | 1500 | 12 | 2835 | 120° | E | 24 | >95 | >90 | 20/65 |
4000K | 130 | 1560 | |||||||||
6500K | 135 | 1620 | |||||||||
SC-TSE-2835-Ppass | SWW | 100 | 1200 | 12 | 2835 | 120° | F | 24 | >95 | >90 | 67 |
NW | 104 | 1250 | |||||||||
CW | 107 | 1290 |
