High efficiency up to 196 lm/W, meets class B and C.

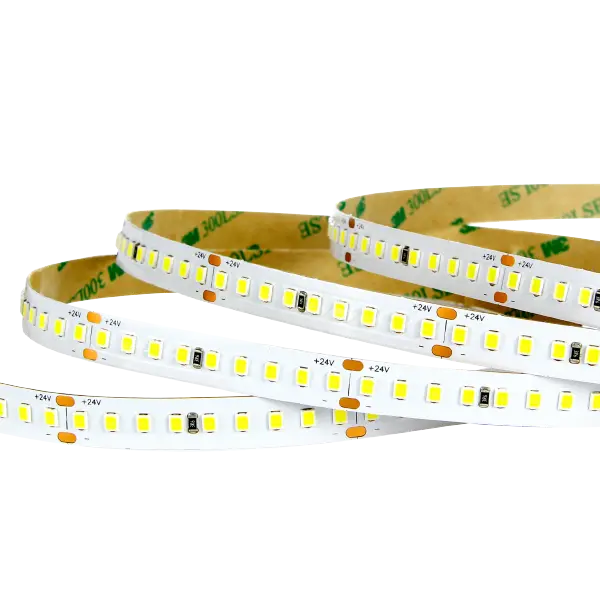

Quality SMD2835 0.2W LED provides unparalleled design-in flexibility for LED strip application.
SDCM(standard deviation of colour matching) within six-step, IES60081:2010 standard.
Flexible luminous and cutting configurations to comply with various different system solutions.
As pioneers among LED strip light manufacturers in China, Signcomplex brings you a dazzling array of products that redefine illumination. Discover the key benefits of choosing Signcomplex for all your lighting needs.
| Model | Color | Efficiency (lm/W) | Lumen (lm/m) | LED qty. (leds/m) | Rated watt (W/m) | LED type | Beam angle | Class | Voltage (V) | Width | CRI |
| SC-ST-2835-XW-80D-24V-8W | 2700K 3000K 3500K 4000K 5000K 5700K 6500K | 166 | 1330 | 80 | 8 | 2835 | 120° | C | 24 | 10mm | >80 |
| SC-ST-2835-XW-80D-24V-10W | 163 | 1633 | 80 | 10 | |||||||
| SC-ST-2835-XW-128D-24V-10W | 166 | 1660 | 128 | 10 | |||||||
| SC-ST-2835-XW-128D-24V-12W | 166 | 1990 | 128 | 12 | |||||||
| SC-ST-2835-XW-128D-24V-14W | 164 | 2290 | 128 | 14 | |||||||
| SC-ST-2835-XW-160D-24V-12W | 165 | 1980 | 160 | 12 | |||||||
| SC-ST-2835-XW-160D-24V-18W | 166 | 2990 | 160 | 18 | |||||||
| SC-ST-2835-XW-240D-24V-20W | 164 | 3270 | 240 | 20 | |||||||
| SC-ST-2835-XW-240D-24V-25W | 163 | 4083 | 240 | 25 | |||||||
| SC-ST-2835-XW-162D-24V-10W | 195 | 1950 | 162 | 10 | B | ||||||
| SC-ST-2835-XW-198D-24V-10W | 196 | 1956 | 198 | 10 | |||||||
| SC-ST-2835-XW-256D-24V-30W | 188 | 5626 | 256 | 30 | |||||||
| SC-ST-2835-XW-288D-24V-35W | 187 | 6530 | 288 | 35 |
