Three-color silicone, Using high quality eco-friendly silicone brings high light transmission performacne;
Recessed installation, no fear of gaps, perfect edge closing, with "wing" structure design, can achieve perfect embedded installation, no installation gap problems caused by slotting precision;
Ultra-narrow: 6x8mm;

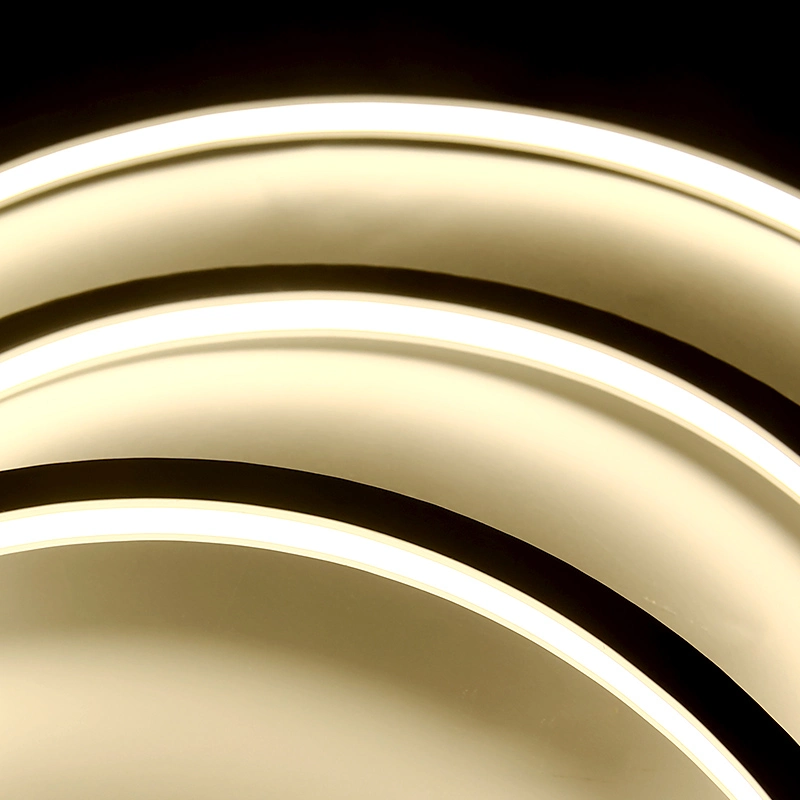

Soft Light, more uniform luminescence. No light dot can be seen even in close distance, soft light;
Top-emitting, Bending radius: R≥75;

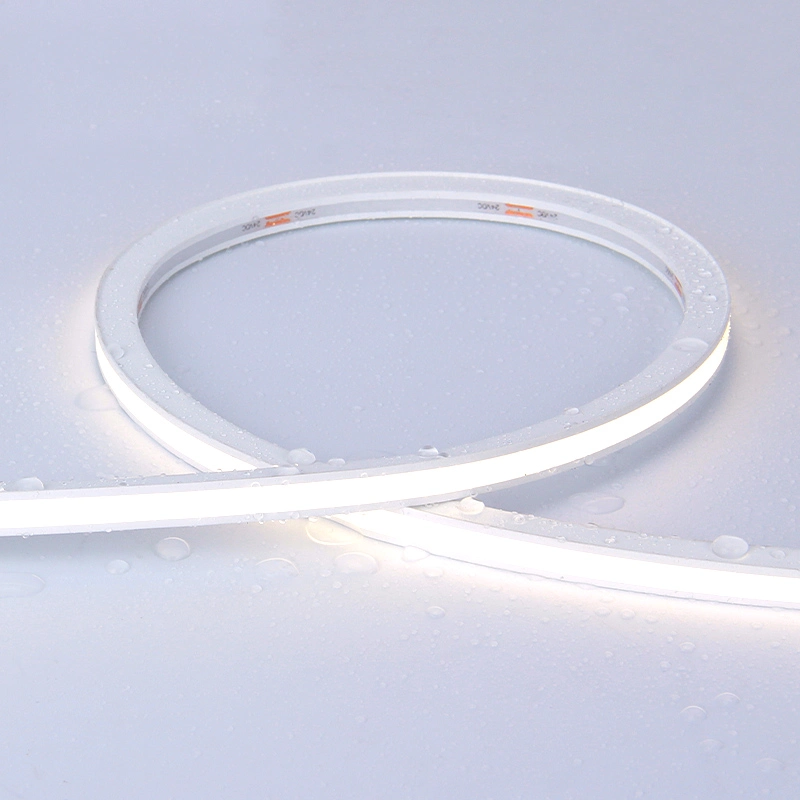

IP65 waterproof grade, good waterproof effect, safer application;

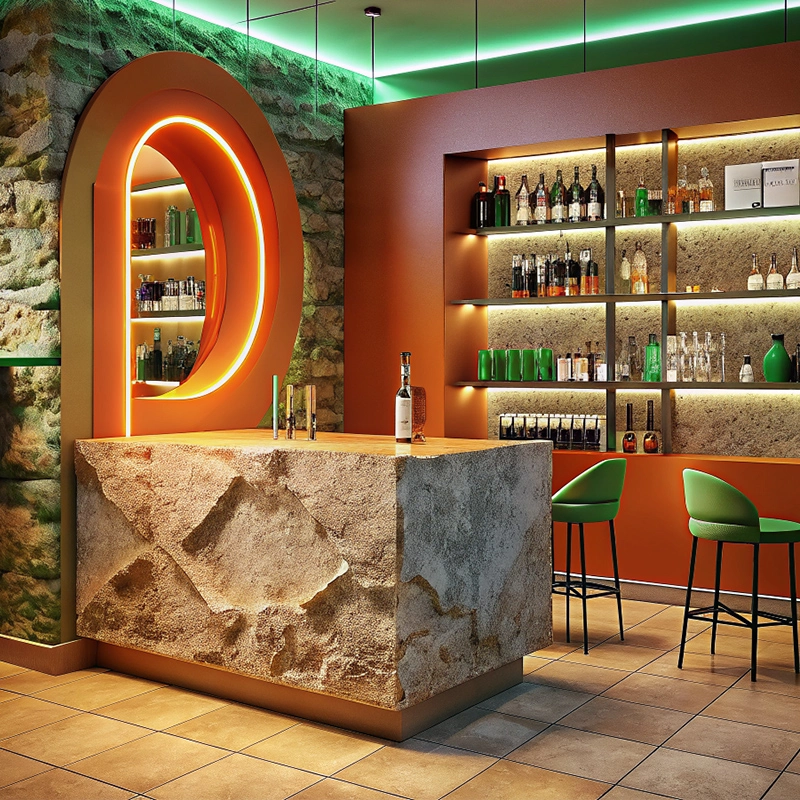

Suitable for decorative lighting, signage, advertising sign, exhibition booth, etc.
| Model | Wave length & CCT range | Luminous flux (lm/m) | LED type | CRI | Beam angle (degree) | PCB width (mm) | Max. length (m) | DC voltage (V) | LED qty. (pcs/m) | Rated watt (W/m) | IP | |
| SC-2219-08-JT0608W-XX-24-160-4.5-IP65 | WW | 2800-3200K | 400 | 2219 | 80 | 110 | 4.5 | 5 | 24 | 160 | 4 | 65 |
| NW | 3800-4500K | 440 | ||||||||||
| W | 6000-6500K | 440 | ||||||||||
| R | 620-630nm | / | 2219 | 80 | 110 | 4.5 | 5 | 24 | 160 | 4 | 65 | |
| G | 515-530nm | / | ||||||||||
| B | 460-470nm | / | ||||||||||
Unit:mm/inch
