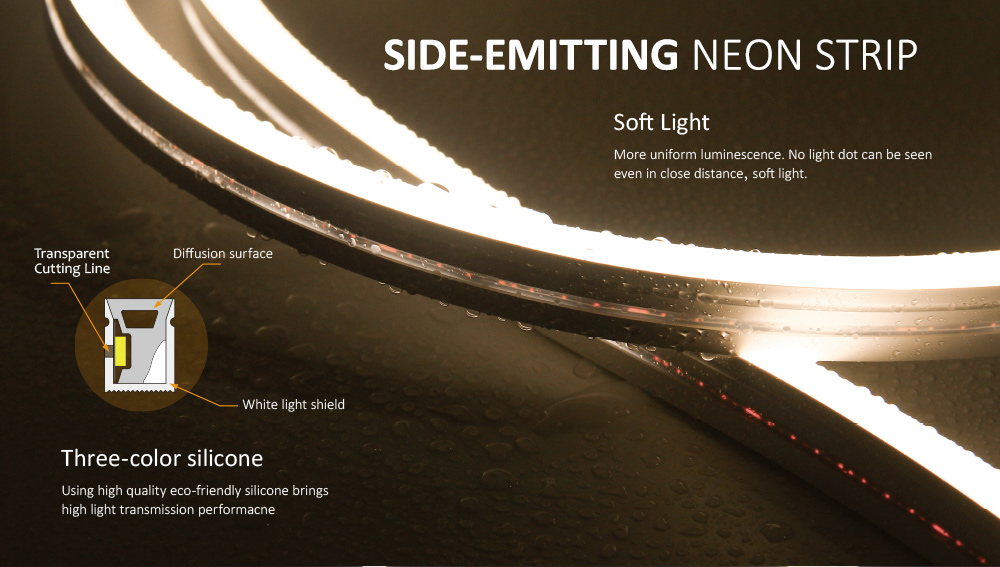

Three-color silicone, Using high quality eco-friendly silicone brings high light transmission performacne;
Side-emitting, Super flexible bending performance.;
Bending radius: R≥75;
Soft Light, More uniform luminescence, No light dot can be seen even in close distance, soft light.
IP67 waterproof grade, good waterproof effect, safer application;
Suitable for surface mount and recessed curved applications;

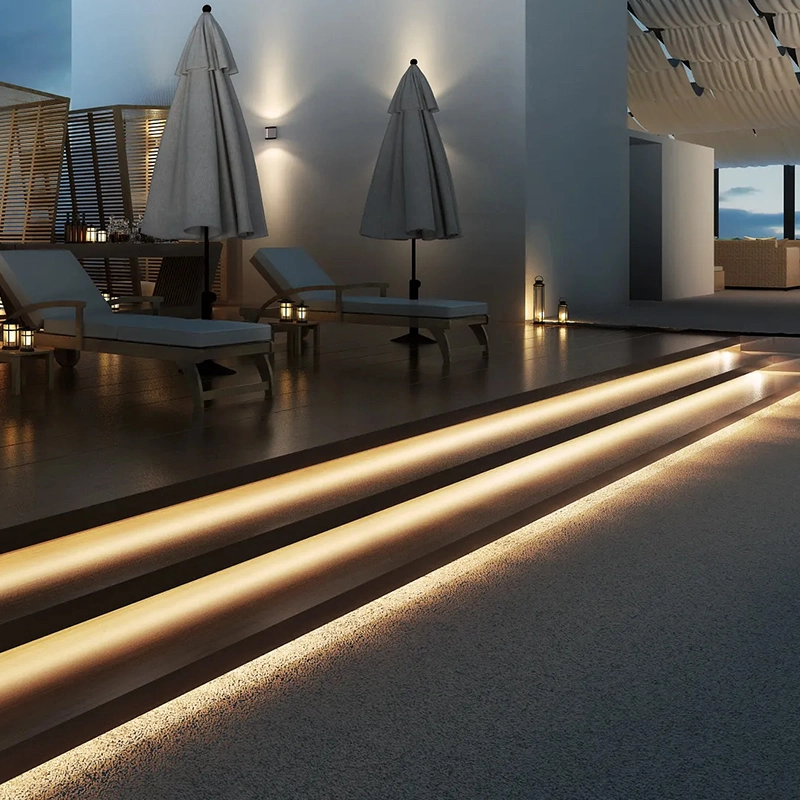

Widely used in hotels, shopping malls, furniture, cabinets, bookshelves, as decorative lighting, direct lighting or indirect lighting.
| Model | Wave length & CCT range | Luminous flux (lm/m) | LED type | CRI | Beam angle (degree) | PCB width (mm) | Max. length (m) | DC voltage (V) | LED qty. (pcs/m) | Rated watt (W/m) | IP | |
| SC-2835-08-TS1216W -XX-160-24-10-IP67 | WW | 2800-3200K | 473 | 2835 | 80 | 120 | 10 | 5 | 24 | 160 | 9.6 | 67 |
| NW | 3800-4500K | 442 | ||||||||||
| W | 6000-6500K | 551 | ||||||||||
| R | 620-630nm | / | 2835 | / | 120 | 10 | 5 | 24 | 160 | 9.6 | 67 | |
| G | 515-530nm | / | ||||||||||
| B | 460-470nm | / | ||||||||||

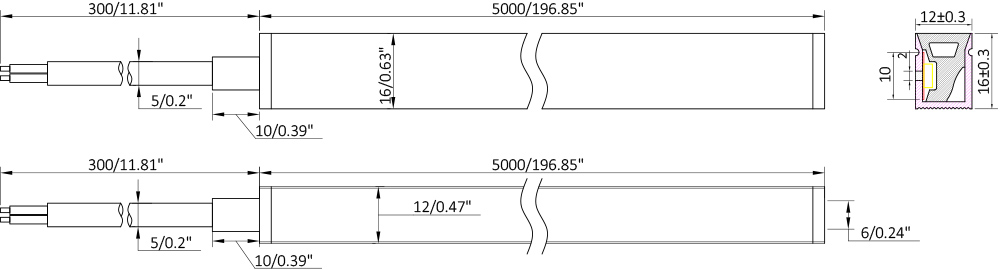

Unit:mm/inch
