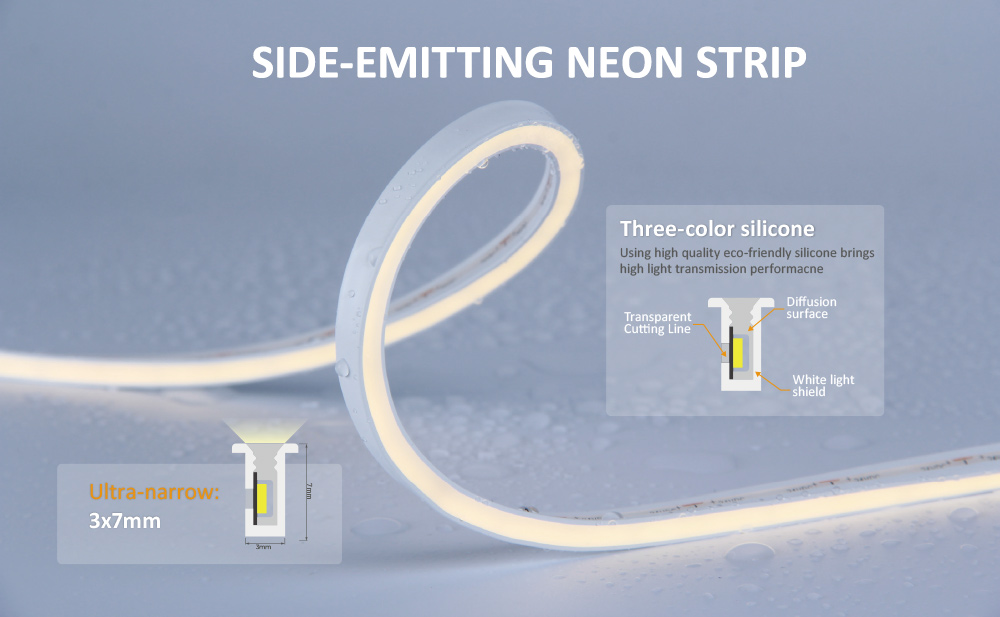

Three-color silicone, Using high quality eco-friendly silicone brings high light transmission performacne;
Ultra-narrow: 3x7mm;
Side-emitting, Super flexible bending performance;
Bending radius: R≥30;
Soft Light, More uniform luminescence, No light dot can be seen even in close distance, soft light;
IP65 waterproof grade, good waterproof effect, safer application;
Recessed installation, Side-emitting limit size, compact design, anti-bending;
Suitable for decorative lighting, signage, advertising sign, exhibition booth, etc.
| Model | Wave length & CCT range | Luminous flux (lm/m) | LED type | CRI | Beam angle (degree) | PCB width (mm) | Max. length (m) | DC voltage (V) | LED qty. (pcs/m) | Rated watt (W/m) | IP | |
| SC-2219-06-JS0307W -XX-12-240-4-IP65 | WW | 2800-3200K | 432 | 2219 | 80 | 120 | 4 | 5 | 24 | 240 | 6 | 65 |
| NW | 3800-4500K | 432 | ||||||||||
| W | 6000-6500K | 449 | ||||||||||
| R | 620-630nm | / | 2219 | 80 | 120 | 4 | 5 | 24 | 240 | 6 | 65 | |
| G | 515-530nm | / | ||||||||||
| B | 460-470nm | / | ||||||||||

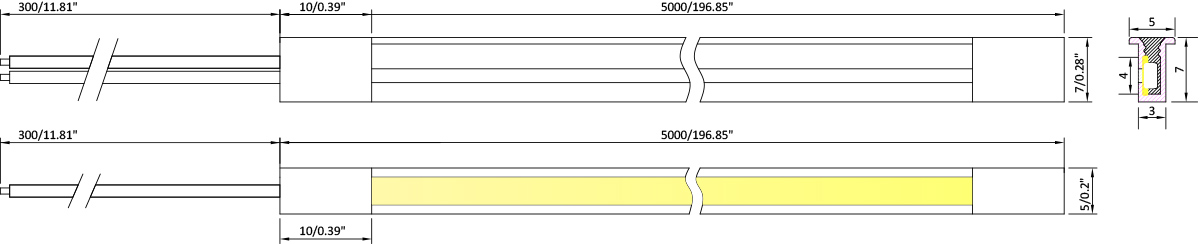

Unit:mm/inch
