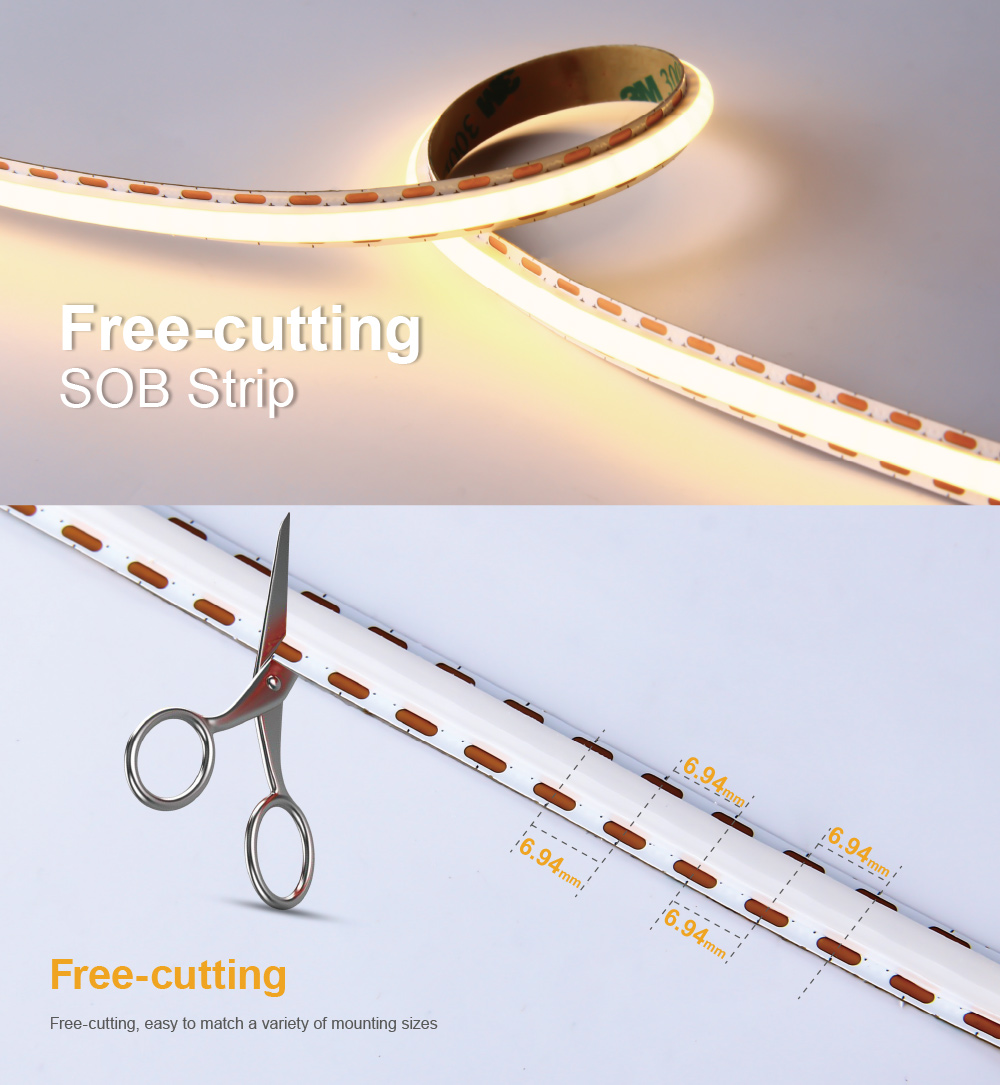

Free-cutting, easy to match a variety of mounting sizes;

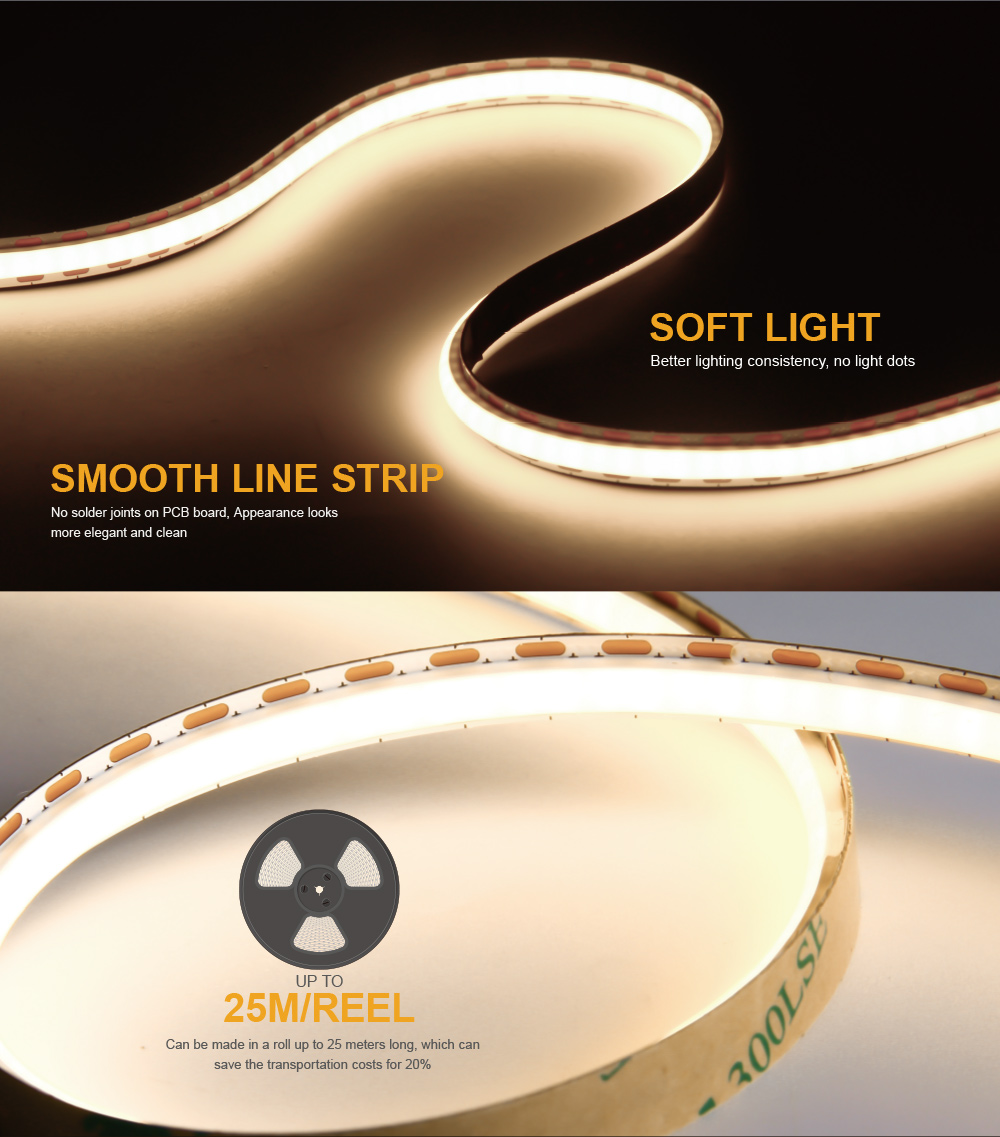

Smooth line strip, No solder joints on PCB board, Appearance looks more elegant and clean;
Soft light, Better lighting consistency, no light dots;
Can be made in a roll up to 25 meters long, which can save the transportation costs for 20%;

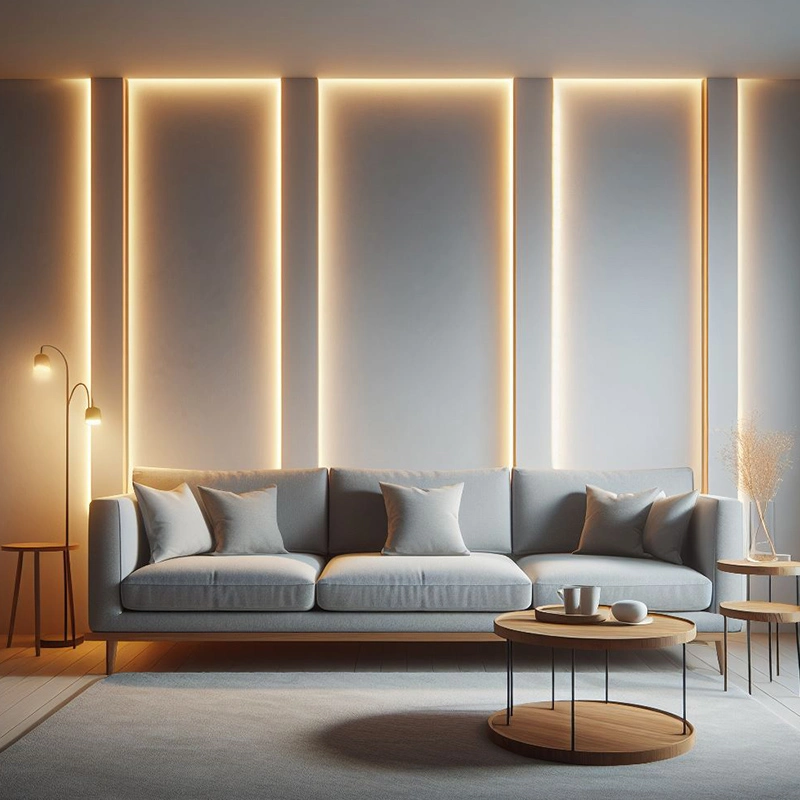

Suitable for decorative lighting, signage, advertising signs, exhibition stands, etc;

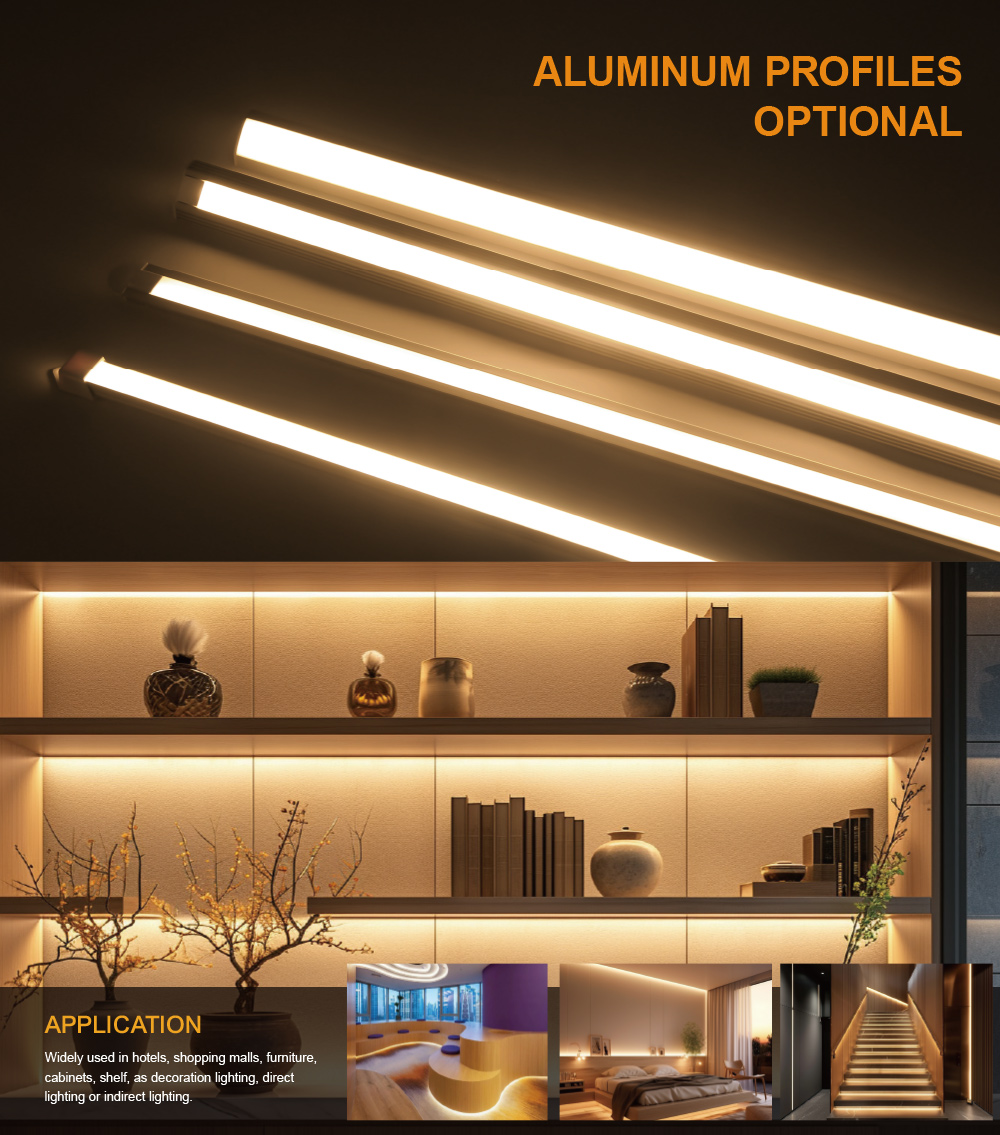

Widely used in hotels, shopping malls, furniture, cabinets, shelf, as decoration lighting, direct lighting or indirect lighting.
| Model | CCT | Lumen(lm/m) | CRI | LED Type | LED Qty.(PCS/M) | DC Voltage(V) | Rated Watt(w/m) | Beam Angle | IP |
| SC-2219-02-D0803-HXXK-12/24- 288-8-IP40 | 2700±100K | 960 | 90 | 2219 | 288 | 12/24 | 9.6 | 130° | 40 |
| 3000±100K | 980 | ||||||||
| 3500±150K | 1000 | ||||||||
| 4000±150K | 1030 | 80 | |||||||
| 5700±200K | 1020 | ||||||||
| 6000±300K | 1020 | ||||||||
| SC-2219-02-D0803-XXK-12/24- 288-8-IP40 | 2700±100K | 1100 | 90 | 2219 | 288 | 12/24 | 9.6 | 130° | 40 |
| 3000±100K | 1110 | ||||||||
| 3500±150K | 1130 | ||||||||
| 4000±150K | 1150 | 80 | |||||||
| 5700±200K | 1140 | ||||||||
| 6000±300K | 1140 |

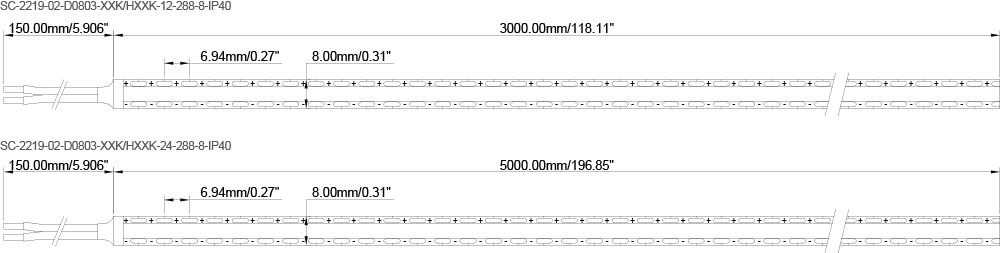

Unit: mm/inch
