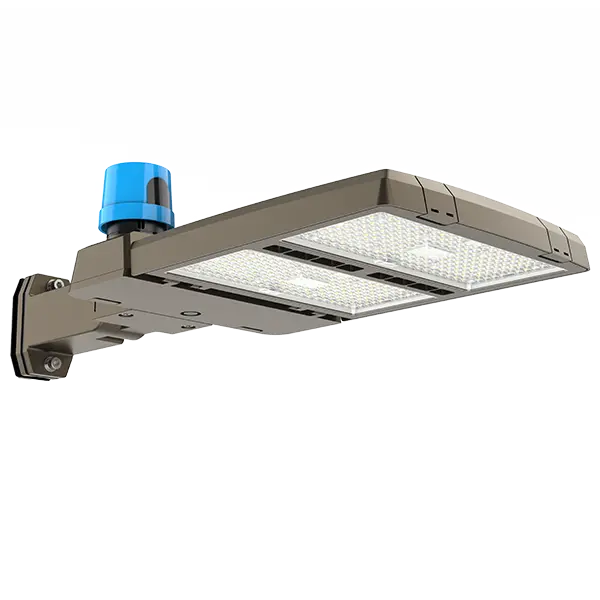

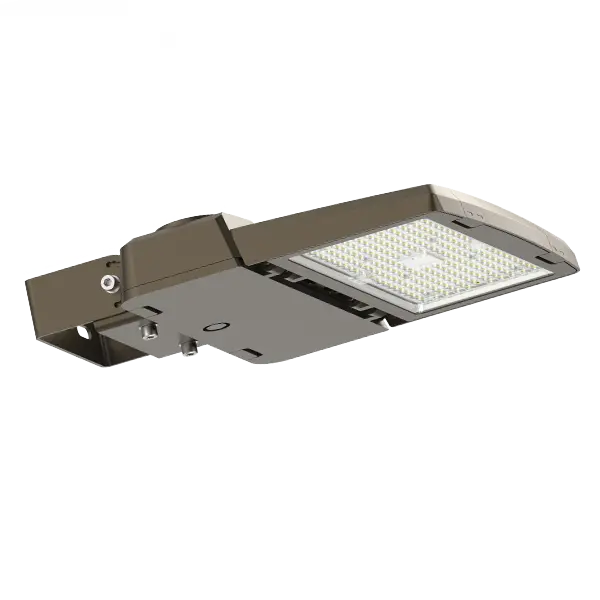

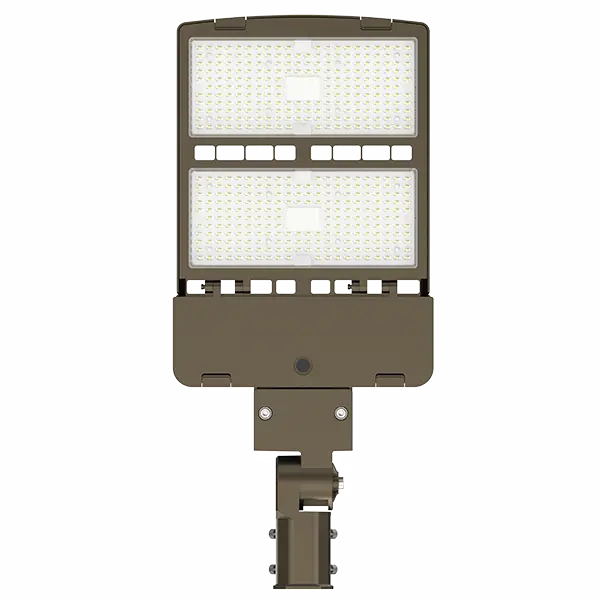

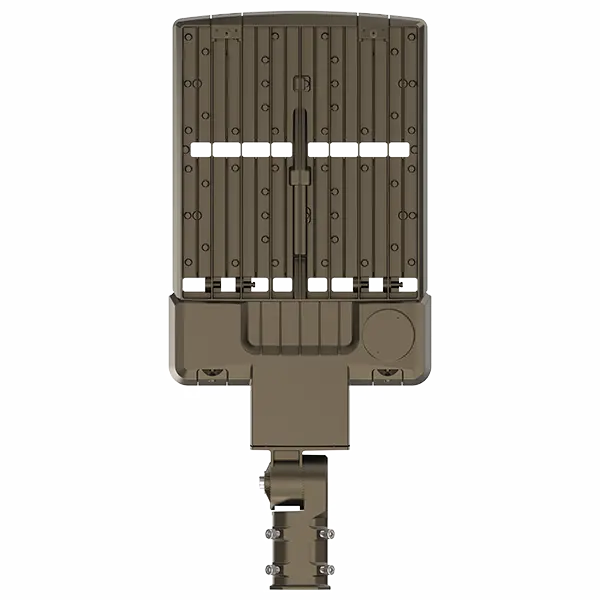

The Polaris ll LED Area lights adopts innovative design,Terminal reserved in the fixture
and mounting bracket making the installation process faster and easier.
▪ Buckle design, easy to open the cover;
▪ Press in & out design, tool free to replace the lens;
▪ Plug & Play design, easy wiring, no need to struggle with wiring schematics;
▪ Universal bracket, slipfitter, wall & pole mount all in one bracket;
▪ Built-in DlP switch, wattage & CCT can be easily adjustable;
▪ Used in parking lot, small stadium, plaza, alley, park, farm, gas station community,
roadway and other outdoor location.
Model | CCT | Lumen(lm)±10% | Power(W)±10% | Beam(angle) | LEDs type | CRI | Voltage | Light effect |
ALPII-100-AW-50K-D3YY | 4700-5300K | 13000 | 100W | P40:105X65° | SMD | >80 | AW:120-277V AC 50-60Hz | 130LM/W |
ALPII-100-AW-40K-D3YY | 3700-4300K | 12800 | ||||||
ALPII-100-AW-30K-D3YY | 2700-3200K | 12000 | ||||||
ALPII-150-AW-50K-D3YY | 4700-5300K | 19500 | 150W | |||||
ALPII-150-AW-40K-D3YY | 3700-4300K | 19200 | ||||||
ALPII-150-AW-30K-D3YY | 2700-3200K | 18000 | ||||||
ALPII-230-AW-50K-D3YY | 4700-5300K | 29900 | 230W | |||||
ALPII-230-AW-40K-D3YY | 3700-4300K | 29440 | ||||||
ALPII-230-AW-30K-D3YY | 2700-3200K | 27600 | ||||||
ALPII-300-AW-50K-D3YY | 4700-5300K | 39000 | 300W | |||||
ALPII-300-AW-40K-D3YY | 3700-4300K | 38400 | ||||||
ALPII-300-AW-30K-D3YY | 2700-3200K | 36000 | ||||||
ALPII-100-AW-50K-D6YY | 4700-5300K | 16000 | 100W | P40:105X65° T3M:160X60° | SMD | >80 | AW:120-277V AC 50-60Hz | 160LM/W |
ALPII-100-AW-40K-D6YY | 3700-4300K | 15800 | ||||||
ALPII-100-AW-30K-D6YY | 2700-3200K | 15000 | ||||||
ALPII-150-AW-50K-D6YY | 4700-5300K | 24000 | 150W | |||||
ALPII-150-AW-40K-D6YY | 3700-4300K | 23700 | ||||||
ALPII-150-AW-30K-D6YY | 2700-3200K | 22500 | ||||||
ALPII-230-AW-50K-D6YY | 4700-5300K | 36800 | 230W | |||||
ALPII-230-AW-40K-D6YY | 3700-4300K | 36340 | ||||||
ALPII-230-AW-30K-D6YY | 2700-3200K | 34500 | ||||||
ALPII-300-AW-50K-D6YY | 4700-5300K | 48000 | 300W | |||||
ALPII-300-AW-40K-D6YY | 3700-4300K | 47400 | ||||||
ALPII-300-AW-30K-D6YY | 2700-3200K | 45000 |
Unit: mm/inch
