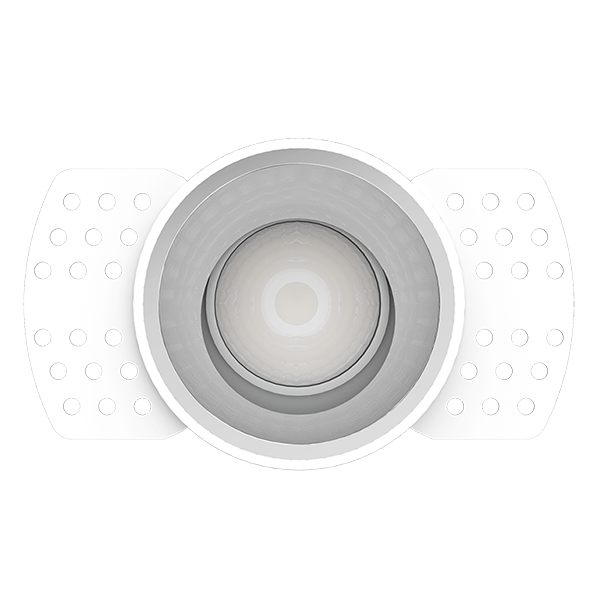

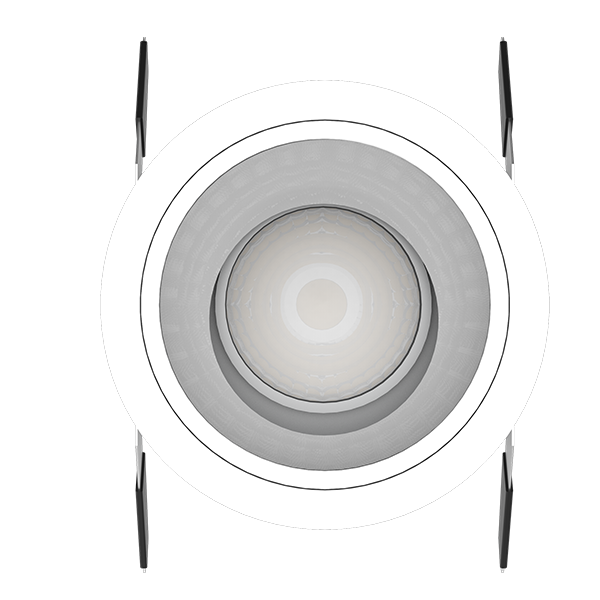

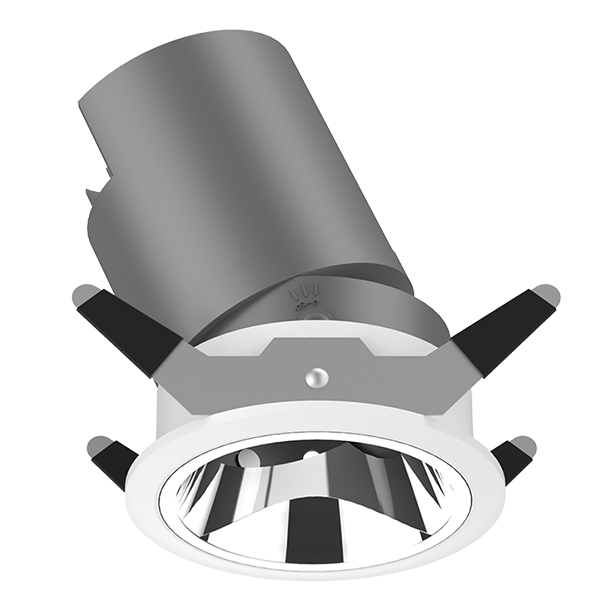

LED Wall Washer Downlight

LED Wall Washer Downlight

SDL series wall washer downlight balance the lighting by making subtle correction to the uneven luminosity on horizontal surfaces. It's a functions of lighting which highlights certain objects, clear contrast and accurate directional light distribution are required to draw attention to a specific point. it's precisely defined depending on its roles.


  • The lamp housing is made of high quality Aluminium Alloy material which is treated with advanced static electricity spray process.

  • The lamp offer multiple size: 2inch, 3inch, 4inch. And offer 3 different reflector: black, white, silver, suitable for all kinds of decoration styles.

  • Reliable COB light source, No UV, no infrared radiation.

  • External driver make sure low heat, good performance with long lifetime. Also easy for replacement.

  • LED is positioned in the deepest part of this lamp, the reflector is optically curved by using our unique three-optical design, it's minimize the loss of device's efficiency and controls irregular reflection from its inner surface, to reach a accent, uniform, clean and comfortable lighting.

  • >40 degrees Anti-glare design, create a comfortable lighting environment atmosphere.

lm80 ce rohs warranty 3years
Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm)ColorLED typeBeam anglePower(W)Max. current(A)VoltagePFCRI
SDL03-007-R90AXXB-50K-014700K-5300K350WCOB24°/36°70.04220-240V AC
50/60Hz
>0.85>90
SDL03-007-R90AXXB-40K-013800K-4200K350NW
SDL03-007-R90AXXB-30K-012800K-3200K350WW
SDL03-007-R90AXXB-27K-012600K-2800K350WW
SDL03-015-R90AXXB-50K-014700K-5300K950WCOB24°/36°150.08COB>0.85>90
SDL03-015-R90AXXB-40K-013800K-4200K950NW
SDL03-015-R90AXXB-30K-012800K-3200K950WW
SDL03-015-R90AXXB-27K-012600K-2800K950WW
SDL03-020-R90AXXB-50K-014700K-5300K1350WCOB24°/36°200.1COB>0.85>90
SDL03-020-R90AXXB-40K-013800K-4200K1350NW
SDL03-020-R90AXXB-30K-012800K-3200K1350WW
SDL03-020-R90AXXB-27K-012600K-2800K1350WW
SDL04-007-R90AXXB-50K-014700K-5300K350WCOB24°/36°70.04220-240V AC
50/60Hz
>0.85>90
SDL04-007-R90AXXB-40K-013800K-4200K350NW
SDL04-007-R90AXXB-30K-012800K-3200K350WW
SDL04-007-R90AXXB-27K-012600K-2800K350WW
SDL04-015-R90AXXB-50K-014700K-5300K950WCOB24°/36°150.08COB>0.85>90
SDL04-015-R90AXXB-40K-013800K-4200K950NW
SDL04-015-R90AXXB-30K-012800K-3200K950WW
SDL04-015-R90AXXB-27K-012600K-2800K950WW
SDL04-020-R90AXXB-50K-014700K-5300K1350WCOB24°/36°200.1COB>0.85>90
SDL04-020-R90AXXB-40K-013800K-4200K1350NW
SDL04-020-R90AXXB-30K-012800K-3200K1350WW
SDL04-020-R90AXXB-27K-012600K-2800K1350WW


Size
