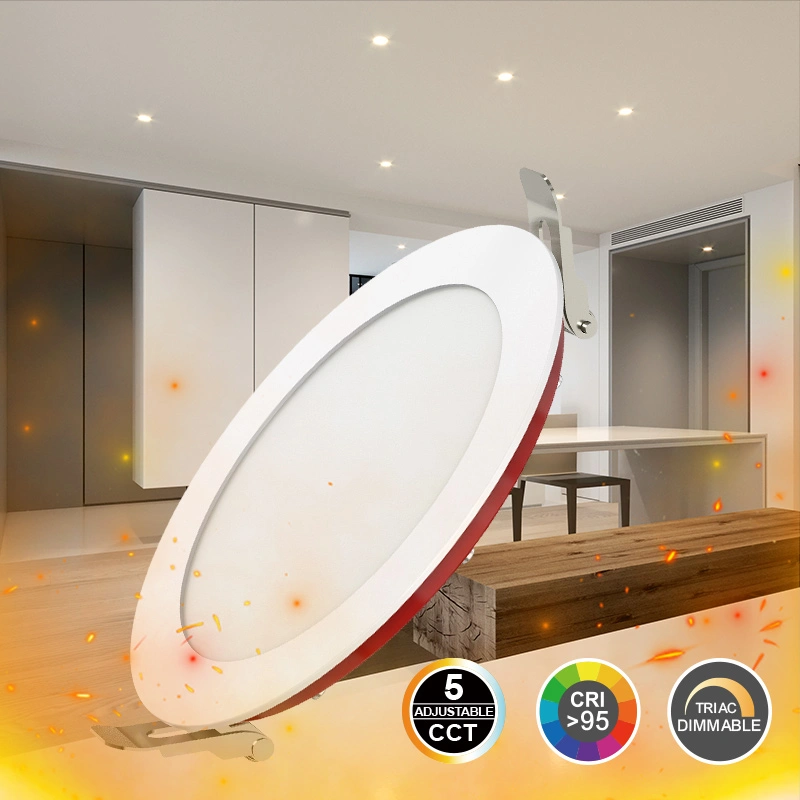

Fire Rated Round Slim Downlight

Fire Rated Round Slim Downlight

  • Flame retardant for 2 hours, Fire rated-Clas A

  • 5CCT Adjustable(2700K-5000K)

  • Brightness adjustable(5%-100%)

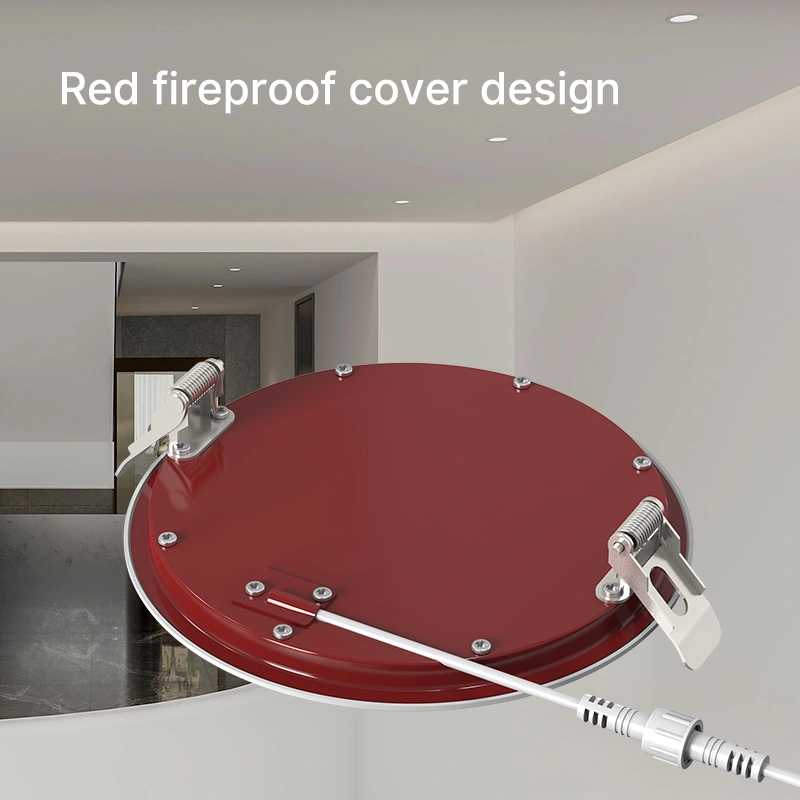

  • The all-aluminum ultra-thin lamp body is designed to be wrapped with
    a red fireproof cover to prevent it from exposing the ignition point.

  • Adopting double-sided frosted diffusion plate for more even light.

  • Can be dimmed with most conventional dimmers with a
    dimming range of up to 10%-100%.


Application

Meets kinds of needs in applications such as kitchen, living room, bedroom, bathroom,
workplace, common areas, outside soffits and other hard to reach spaces.

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm±10%)Beam(angle)LED TypePower(w)
(±10%)
VoltageCRIPFSizeIP ratingFireproof level
SC-FDL06-D03-A1-01RE2700K

500lm

110°
28356WAC100-130V/50Hz≥90
>0.93inchIP40Clas A
3000K
3500K
4000K
5000K
SC-FDL09-D04-A1-01RE2700K750lm110°
28359WAC100-130V/50Hz≥90
>0.94inchIP40Clas A
3000K
3500K
4000K
5000K
SC-FDL012-D06-A1-01RE2700K990lm110°
283512WAC100-130V/50Hz≥90
>0.96inchIP40Clas A
3000K
3500K
4000K
5000K
SC-FDL018-D08-A1-01RE2700K1500lm110°
283518WAC100-130V/50Hz≥90
>0.98inchIP40Clas A
3000K
3500K
4000K
5000K

Size

Unit: inch
