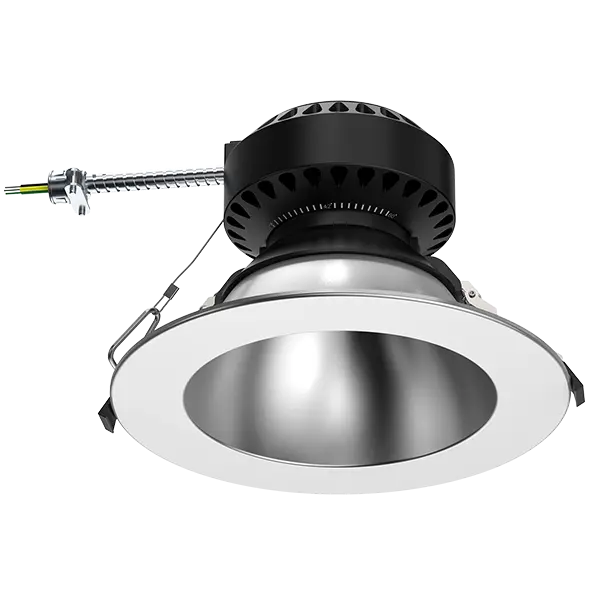

Commercial Downlight DL109 series

Commercial Downlight DL109 series

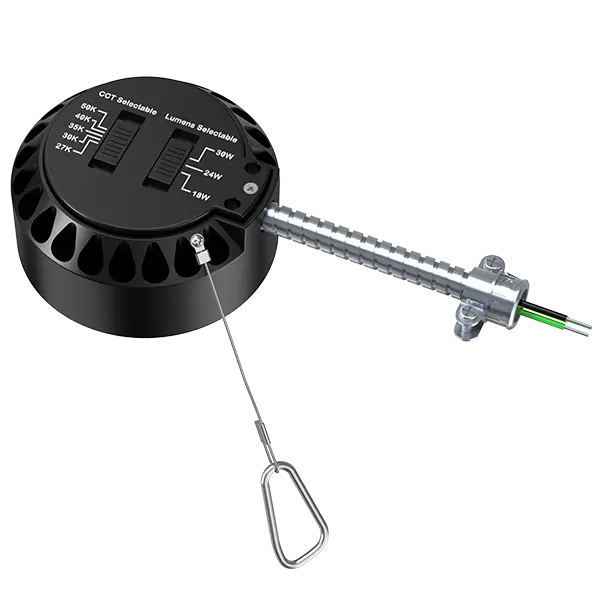

  • 5CCT selectable: 2700K,3000K,3500K,4000K,5000K;

  • 3 Wattage selectable: M110 module (18W/24W/30W), M140 module (30W/40W/50W);

  • 3 Dual beam angle: 24°-60° for M110, 36°-60° for M140;

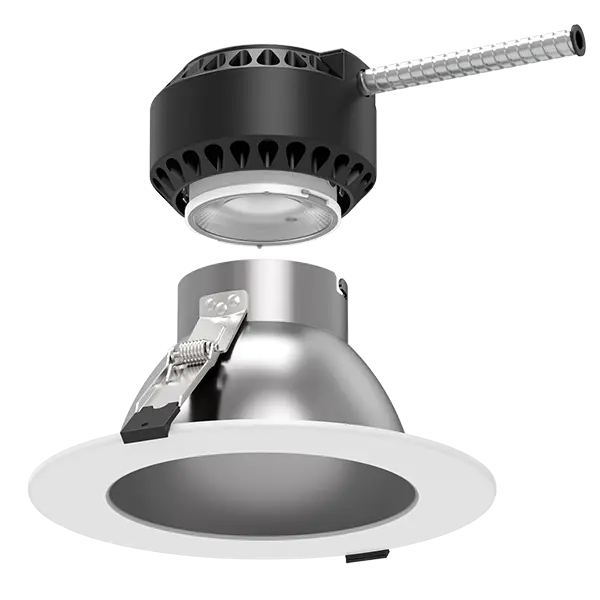

  • Twist-On for Easy Installation;

  • 0-10V and triac dimming, 5-100% smooth dimming;

  • Fresnel optical lens, 30° cut-off angle optical design, UGR<19;

  • Suitable for wet locations;

Inquire
Inquire
Share
Share
Specifications
Download

Parameters

ModelCCTLumen(lm±10%)Beam(angle)LED TypePower(w)
(±10%)
VoltageCRIPFDimming TypeEfficacy
DL109A/DL109H-110-30W2700K

1800lm/
2400lm/
2700lm

24°-60°
COB18W/24W/30WAC120-277V/60Hz≥90 /
           ≥80
>0.950-10V and Traic Dim70-100lm/w@CRI90,
80-110lm/w @ CRI80
3000K
3500K
4000K
5000K
DL109H-140-50W2700K3000lm/
4000lm/
4550lm
36°-60°COB30W/40W/50WAC120-277V/60Hz≥90 /≥80>0.950-10V,Dim70-100lm/w@CRI90,
80-110lm/w @ CRI80
3000K
3500K
4000K
5000K

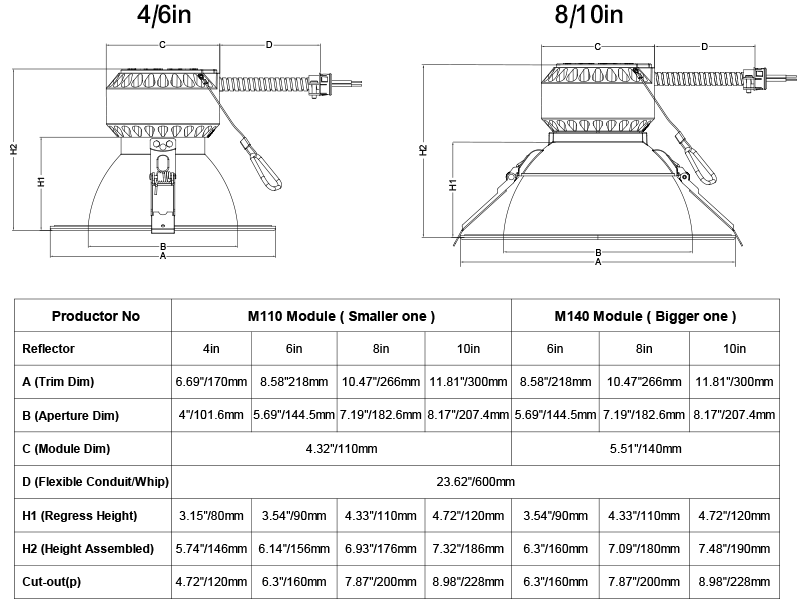

Size

Unit: mm/inch
