The outer frame adopts 6063-T5 extruded aluminum, light weight and good heat dissipation. Various colors can be sprayed to meet customer requirements.

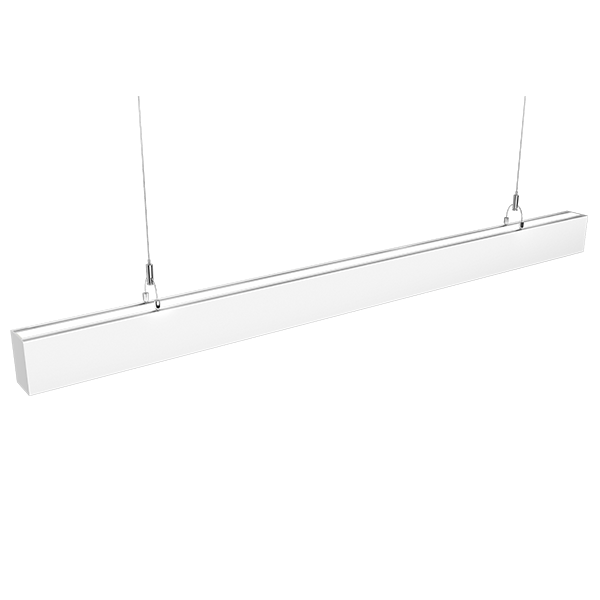

The product has two types: direct lighting and direct/indirect lighting. The indirect lighting module is an integrated design with a quick coupling structure, which can be used as accessories for delivery, and customers can choose to install/purchase.
Product can be used individually or seamlessly spliced. Each lamp has a built-in connector to realize the connection of circuit and structure. Under the 220V circuit, the longest connection can be 900W.
The light source adopts 2538 SMD LEDs, good heat dissipation, long life up to 50000 hours.
| Product name | Model | CCT | Lumen(lm) (±10%) | LED type | Power(W) (±10%) | Beam angle | CRI | PF | Voltage (V) | Remark |
| 1.2M Direct lighting only | SC-SL8055-040-D-AW-WW | 6000-6500K | 4100 | SMD2835 | 40W | 110° | ＞80 | >0.9 | 220-240VAC 50/60HZ | No dimming +milky lens |
| SC-SL8055-040-D-AW-NW | 3800-4200K | 4200 | ||||||||
| SC-SL8055-040-D-AW-CW | 2800-3200K | 4000 | ||||||||
| SC-SL8055-040-D-DA-AW-WW | 6000-6500K | 4100 | DALI dimming +milky lens | |||||||
| SC-SL8055-040-D-DA-AW-NW | 3800-4200K | 4200 | ||||||||
| SC-SL8055-040-D-DA-AW-CW | 2800-3200K | 4000 | ||||||||
| SC-SL8055-040-D-UGR-AW-CW | 6000-6500K | 4100 | No dimming +UGR＜19 lens | |||||||
| SC-SL8055-040-D-UGR-AW-NW | 3800-4200K | 4200 | ||||||||
| SC-SL8055-040-D-UGR-AW-WW | 2800-3200K | 4000 | ||||||||
| SC-SL8055-040-D-DU-AW-CW | 6000-6500K | 4100 | DALI dimming +UGR＜19 lens | |||||||
| SC-SL8055-040-D-DU-AW-NW | 3800-4200K | 4200 | ||||||||
| SC-SL8055-040-D-DU-AW-WW | 2800-3200K | 4000 | ||||||||
| 1.5M Direct lighting only | SC-SL8055-050-D-AW-WW | 6000-6500K | 5100 | SMD2835 | 50W | 110° | ＞80 | >0.9 | 220-240VAC 50/60HZ | No dimming +milky lens |
| SC-SL8055-050-D-AW-NW | 3800-4200K | 5200 | ||||||||
| SC-SL8055-050-D-AW-CW | 2800-3200K | 5000 | ||||||||
| SC-SL8055-050-D-DA-AW-WW | 6000-6500K | 5100 | DALI dimming +milky lens | |||||||
| SC-SL8055-050-D-DA-AW-NW | 3800-4200K | 5200 | ||||||||
| SC-SL8055-050-D-DA-AW-CW | 2800-3200K | 5000 | ||||||||
| SC-SL8055-050-D-UGR-AW-CW | 6000-6500K | 5100 | No dimming +UGR＜19 lens | |||||||
| SC-SL8055-050-D-UGR-AW-NW | 3800-4200K | 5200 | ||||||||
| SC-SL8055-050-D-UGR-AW-WW | 2800-3200K | 5000 | ||||||||
| SC-SL8055-050-D-DU-AW-CW | 6000-6500K | 5100 | DALI dimming +UGR＜19 lens | |||||||
| SC-SL8055-050-D-DU-AW-NW | 3800-4200K | 5200 | ||||||||
| SC-SL8055-050-D-DU-AW-WW | 2800-3200K | 5000 | ||||||||
| 2.4M Direct lighting only | SC-SL8055-080-D-AW-WW | 6000-6500K | 8200 | SMD2835 | 80W | 110° | ＞80 | >0.9 | 220-240VAC 50/60HZ | No dimming +milky lens |
| SC-SL8055-080-D-AW-NW | 3800-4200K | 8400 | ||||||||
| SC-SL8055-080-D-AW-CW | 2800-3200K | 8000 | ||||||||
| SC-SL8055-080-D-DA-AW-WW | 6000-6500K | 8200 | DALI dimming +milky lens | |||||||
| SC-SL8055-080-D-DA-AW-NW | 3800-4200K | 8400 | ||||||||
| SC-SL8055-080-D-DA-AW-CW | 2800-3200K | 8000 | ||||||||
| SC-SL8055-080-D-UGR-AW-CW | 6000-6500K | 8200 | No dimming +UGR＜19 lens | |||||||
| SC-SL8055-080-D-UGR-AW-NW | 3800-4200K | 8400 | ||||||||
| SC-SL8055-080-D-UGR-AW-WW | 2800-3200K | 8000 | ||||||||
| SC-SL8055-080-D-DU-AW-CW | 6000-6500K | 8200 | DALI dimming +UGR＜19 lens | |||||||
| SC-SL8055-080-D-DU-AW-NW | 3800-4200K | 8400 | ||||||||
| SC-SL8055-080-D-DU-AW-WW | 2800-3200K | 8000 | ||||||||
| 1.2M Indirect lighting module | SC-SL8055-010-U-12-CW | 6000-6500K | 1025 | SMD2835 | 10W | 110° | ＞80 | >0.9 | 46-50VDC | No dimming & DALI dimming |
| SC-SL8055-010-U-12-NW | 3800-4200K | 1050 | ||||||||
| SC-SL8055-010-U-12-WW | 2800-3200K | 1000 | ||||||||
| 1.5M Indirect lighting module | SC-SL8055-013-U-15-CW | 6000-6500K | 1275 | 13W | 46-50VDC | No dimming & DALI dimming | ||||
| SC-SL8055-013-U-15-NW | 3800-4200K | 1300 | ||||||||
| SC-SL8055-013-U-15-WW | 2800-3200K | 1250 |
