Luminous uniformity without light spots.
Circular-arc shape, large light-emitting surface,uniform and soft light.

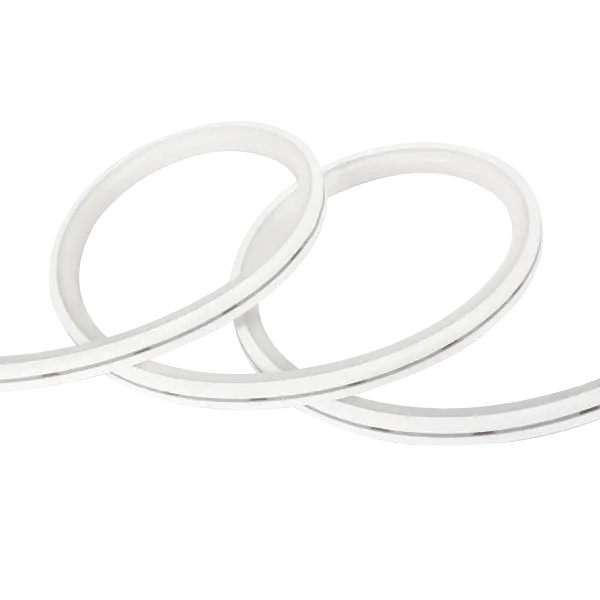

Arbitrary bending
UV resistant high-quality silicone material, Tested by a twisting
testing machine with 1000 cycles or more
Cuttable
Unique window design on the back for easy cutting and use
| Model | CCT | Lumen (lm/m) | LED Type | LED Qty. (PCS/M) | DC Voltage(V) | CRI | Rated Watt(w/m) | Compatible Dimming Methods | IP |
| SC-2835-06-JT1208WXX- 12-144-8-IP67 | 2400K/ 2700K/ 3000K/ 3500K/ 4000K/ 5000K/ 6000K | 600 | 2835 | 144 | 12 | CRI80/ CRI90 | 8.64 | PWM/ 0-10V/ 1-10V/DALI/DMX | 67 |
| SC-2835-06-JT1208WXX- 24-144-8-IP67 | 1100 | 2835 | 144 | 24 | CRI80/ CRI90 | 14.4 | |||
| SC-2835-06-TT1212WXX- 12-144-8-IP67 | 700 | 2835 | 144 | 12 | CRI80/ CRI90 | 8.64 | |||
| SC-2835-06-TT1212WXX- 24-144-8-IP67 | 1200 | 2835 | 144 | 24 | CRI80/ CRI90 | 14.4 |

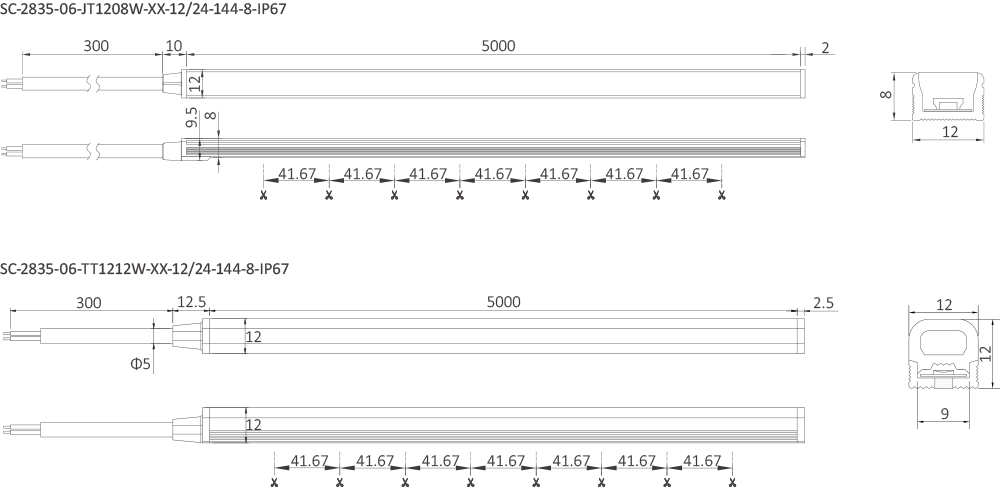

Unit: mm/inch
