High flexibility

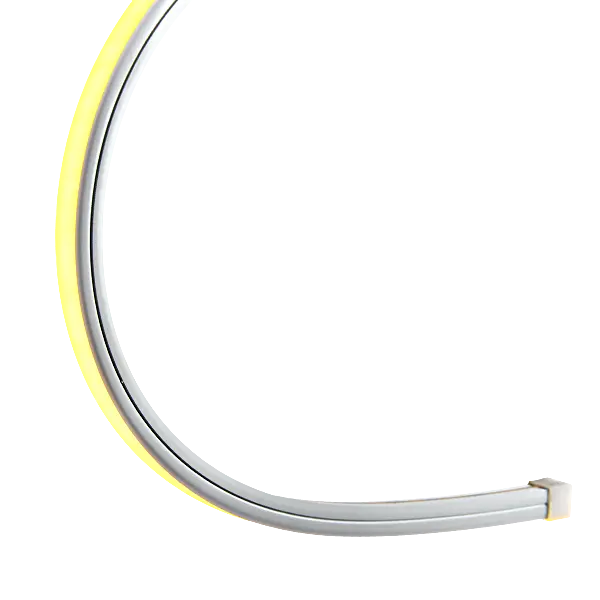

High flexibility, minimum bending radius can be 75MM.
Top-view
Top-view design makes dot free ilumnination, uniform and soft light.
Waterproof and safer application
The product has passed CE, RoHS and other certifications,
good waterproof effect, safer application.
Widely used in hotels, shopping malls, furniture, cabinets, bookshelves,
as decorative lighting, direct lighting or indirect lighting.
| Model | CCT | Luminous Flux (lm/M) | LED Type | LED Qty. (PCS/M) | DC Voltage | Beam | PCB Width(mm) | Rated Watt(w/m) | IP | Ra |
| SC-TSE161628-160 -NW-24V | 2800-3200K | 738 | 2835 | 160 | 24 | 120° | 10 | 9.6 | 65 | 83 |
| 3800-4500K | 770 | |||||||||
| 6000-6500K | 784 | |||||||||
| Red | / | 2835 | 160 | 24 | 120° | 10 | 9.6 | 65 | / | |
| Green | / | |||||||||
| Blue | / |
Unit: mm
