12mm Silicon Side View IP67 Neon Flex

Prev| Next

12mm Silicon Side View IP67 Neon Flex

Color Changeable & Brightness Tunable.
24V DC, 19.6W/M (0.49W/Inch).
Silicon extrusion IP67.
Dimension: 22x12mm(0.87"x0.47").
Side View: Bend direction horizontally.
Dot-free illumination.
Elegant appearance.

Inquire

Inquire

Share

Specifications

Download

Parameters

Model	Wave length (nm)		Luminous flux (lm/m)	PCB width (mm)	Max. length (m)	Min. length (mm)	DC voltage (V)	LED qty. (pcs/m)	Rated watt (w/m)

SC-SSED-RGB+WW-24V	R	620-630	/	12	5	83.33	24	72	19.6
	G	515-530	/
	B	460-470	/
	WW	/	160

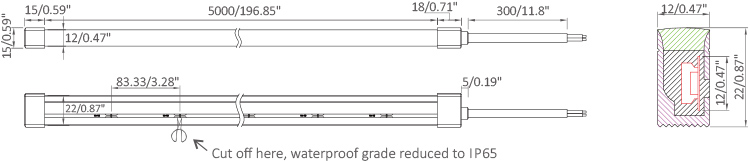

Size
